Elementary: Understanding Processes

Before diving in windows reversing I want to acknowledge to OpenSecurityTrainig (ost2) for their free classes of architecture and OS internal, please check them out, to a better understanding of this blog, at least is recommendable know of Windbg (Debuggers 1011-2011-3011 [in ost2]) and Windows Internals (Architecture 2821 [in ost2])

I would also like to thank m2rc_ who helped me at the end of the blog with the attributes of the SID Hijacking.

Getting Started

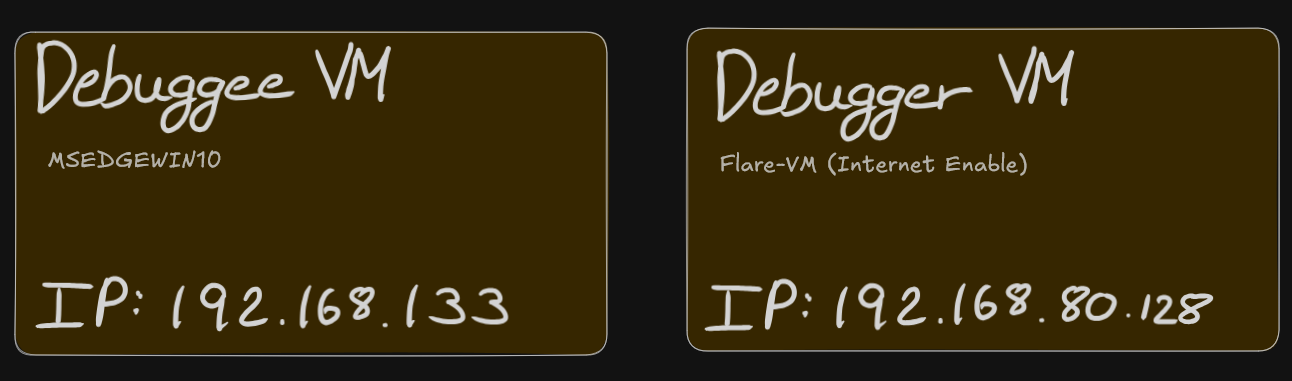

The setup we will have is the following:

alt text

First of all you will have to enable the kernel debugging:

// Debuggee Machine (IP: 192.168.80.133)

Microsoft Windows [Version 10.0.19045.2965]
(c) Microsoft Corporation. All rights reserved.

C:\Windows\system32>bcdedit /debug on
The operation completed successfully.

C:\Windows\system32>bcdedit /dbgsettings net hostip:192.168.1.160 port:50505 key:a.b.c.d
Key=a.b.c.d

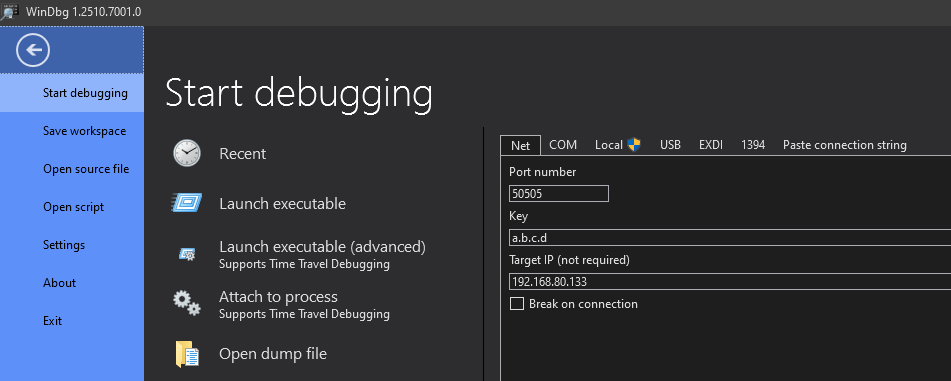

Once through WinDbg (debugger VM) attach the tool with the debugge kernel:

If you can break in windbg and the custom terminal shows:

// Debugger Machine (IP: 192.168.80.128)

nt!DbgBreakPointWithStatus:
fffff802`7e67a500 cc              int     3

0: kd>

We are ready to start debugging.

Remember to quit the breakpoint to be able to manipulate the debugge machine else it will not respond.

Process Token Hijacking

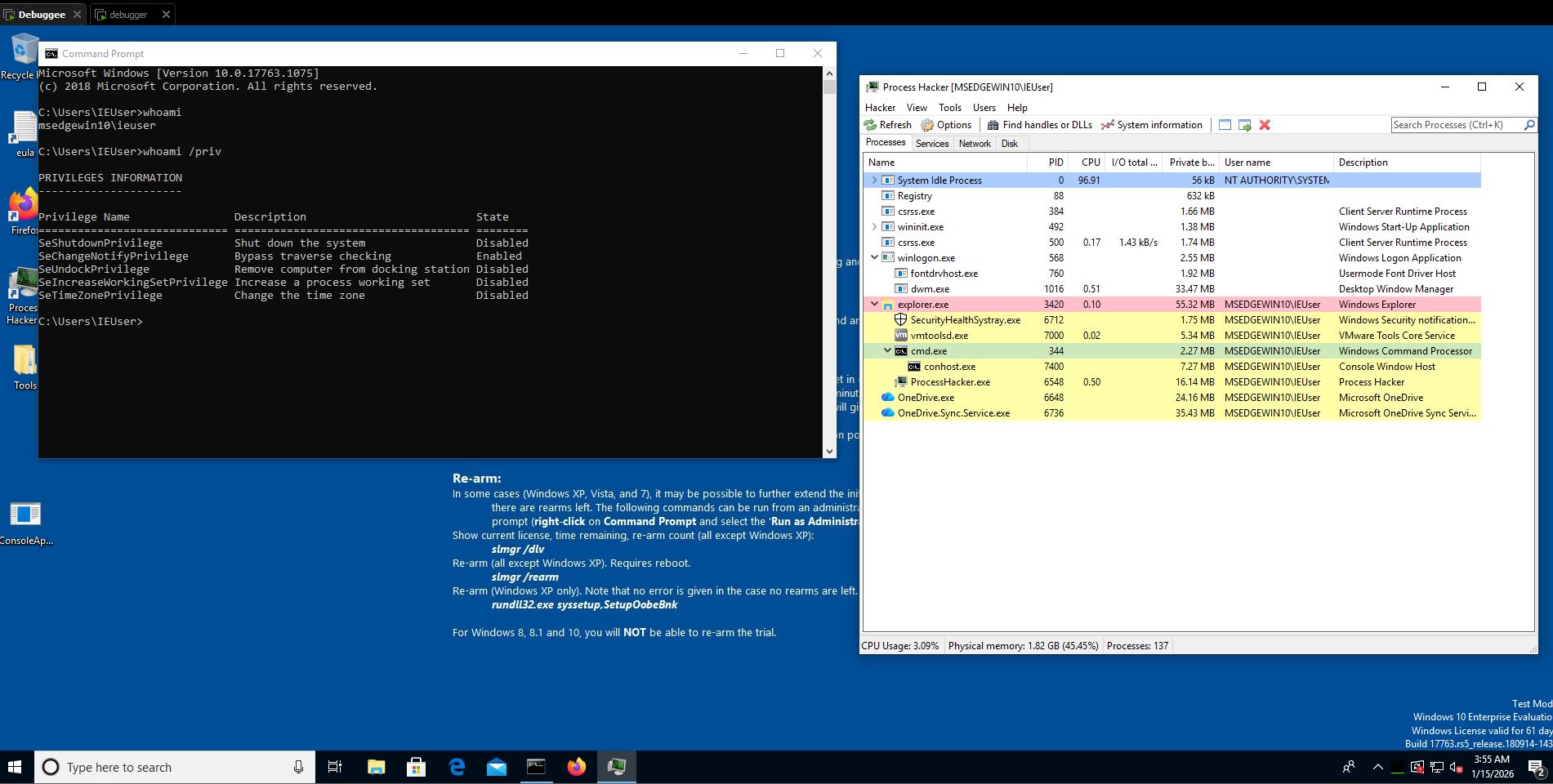

Starting with the simplest way to escalate privileges in windows (in my opinion) is with a token hijacking, thus assuming there is a non-priviledge cmd.exe process in the debuggee:

alt text

With windbg we are able to see the process and gather information about it:

// Debugger Machine (IP: 192.168.80.128)

0: kd> !process 0 0 cmd.exe
PROCESS ffffdb85c57e5080
    SessionId: 1  Cid: 0158    Peb: 72749c000  ParentCid: 0d5c
    DirBase: 61433000  ObjectTable: ffffb38e99843400  HandleCount:  74.
    Image: cmd.exe

Understanding structures

Now, before seeing the token of the process we do a fast check of the _EPROCESS structure used in windows:

//0x850 bytes (sizeof)
struct _EPROCESS
{
    struct _KPROCESS Pcb;                                                   //0x0
    struct _EX_PUSH_LOCK ProcessLock;                                       //0x2d8
    VOID* UniqueProcessId;                                                  //0x2e0
    struct _LIST_ENTRY ActiveProcessLinks;                                  //0x2e8
   // ...
    struct _EX_FAST_REF Token;                                              //0x358
   //...
    volatile ULONGLONG OwnerProcessId;                                      //0x3f0
    struct _PEB* Peb;                                                       //0x3f8
    struct _MM_SESSION_SPACE* Session;                                      //0x400
    // ...
};

If you want to see the entire structure please check: https://www.vergiliusproject.com/kernels/x64/windows-10/1809/_EPROCESS (verify your windows version), in this scenario, we will focus on the structure _EX_FAST_REF Token; //0x358, which contains the real value of the token:

//0x8 bytes (sizeof)
struct _EX_FAST_REF
{
    union
    {
        VOID* Object;                                                       //0x0
        ULONGLONG RefCnt:4;                                                 //0x0
        ULONGLONG Value;                                                    //0x0
    };
};

Kernel debugging Tip

To use fewer bytes in memory, the kernel structure usually maintains hidden information in the same value, here is an example in the process structure, we have the address: 0xffffdb85c57e5080 meaning the process location, but if you want to see the structure _EX_FAST_REF for the Token value you add to the address the offset of the structure, in this case 0x358:

>>> hex(0xffffdb85c57e5080 + 0x358)
'0xffffdb85c57e53d8'

Also, in this structure: _EX_FAST_REF, the last 4 bits do not form part of the token value, because the RefCnt aligment are of 4 bits.

Looking the lowpriv process

We obtain ‘0xffffdb85c57e53d8’, theorically this is the information we wanted, so lets check it in windbg, one of the main favorable points of this tool is that has the offsets and structures loaded (usually from the machine symbols) so we will see all more clearly:

// Debugger Machine (IP: 192.168.80.128)

0: kd> dt nt!_EPROCESS ffffdb85c57e5080 TOKEN
   +0x358 Token : _EX_FAST_REF

Without getting further in windbg explanation we are reading the address the last command return us as a nt!_EPROCESS structure, filtring it to the TOKEN structure, now if we insert the address calculated before:

// Debugger Machine (IP: 192.168.80.128)

0: kd> dt nt!_EX_FAST_REF 0xffffdb85c57e53d8
   +0x000 Object           : 0xffffb38e`918a38f9 Void
   +0x000 RefCnt           : 0y1001
   +0x000 Value            : 0xffffb38e`918a38f9

We obtain the raw token value, anyways this is not to common in windbg because thanks to the user interface you can be redirect to the structure in a beautiful way:

// Debugger Machine (IP: 192.168.80.128)

0: kd> dx -id 0,0,ffffdb85c57e5080 -r1 (*((ntkrnlmp!_EX_FAST_REF *)0xffffdb85c57e53d8))
(*((ntkrnlmp!_EX_FAST_REF *)0xffffdb85c57e53d8))                 [Type: _EX_FAST_REF]
    [+0x000] Object           : 0xffffb38e918a38f8 [Type: void *]
    [+0x000 ( 3: 0)] RefCnt           : 0x9 [Type: unsigned __int64]
    [+0x000] Value            : 0xffffb38e918a38f8 [Type: unsigned __int64]

Continuing with the token hijacking, take note of the ieuser token and the offset is located from the process address:

// Our Notebook

Process Target (cmd.exe : ieuser)
    -> Process: 0xffffdb85c57e5080
    -> Token offset (const): +0x358
    -> Token value: 0xffffb38e918a38f8  & ~0xF // As we see in RefCnt:4

Gathering nt/auth token

For this method the attacker needs a second token to hijack, in this case we will hijack the NT AUTHORITY/SYSTEM from the process System, now a bit faster:

// Debugger Machine (IP: 192.168.80.128)

0: kd> !process 0 0 System
PROCESS ffffdb85c0c69280
    SessionId: none  Cid: 0004    Peb: 00000000  ParentCid: 0000
    DirBase: 001aa000  ObjectTable: ffffb38e8ce04ac0  HandleCount: 2578.
    Image: System

0: kd> dt nt!_EPROCESS ffffdb85c0c69280 TOKEN
   +0x358 Token : _EX_FAST_REF

0: kd> dx -id 0,0,ffffdb85c0c69280 -r1 (*((ntkrnlmp!_EX_FAST_REF *)0xffffdb85c0c695d8))
(*((ntkrnlmp!_EX_FAST_REF *)0xffffdb85c0c695d8))                 [Type: _EX_FAST_REF]
    [+0x000] Object           : 0xffffb38e8ce06047 [Type: void *]
    [+0x000 ( 3: 0)] RefCnt           : 0x7 [Type: unsigned __int64]
    [+0x000] Value            : 0xffffb38e8ce06047 [Type: unsigned __int64]

Update your notebook:

// Our Notebook

Process Target (cmd.exe : ieuser)
    -> Process: 0xffffdb85c57e5080
    -> Token offset (const): +0x358
    -> Token value: 0xffffb38e918a38f8 & ~0xF

Process Victim (System : nt sys)
    -> Process: 0xffffdb85c0c69280
    -> Token value: 0xffffb38e8ce06047 & ~0xF = 0xffffb38e8ce06040

Patching the lowpriv process

Patch the token from cmd.exe to point to the System one:

// Debugger Machine (IP: 192.168.80.128)

0: kd> dq 0xffffdb85c57e5080+358 l1 // Reading the cmd.exe token
ffffdb85`c57e53d8  ffffb38e`918a38f8

0: kd> eq ffffdb85c57e5080+358 0xffffb38e8ce060407 // Hijacking cmd.exe token with the System token

0: kd> dq 0xffffdb85c57e5080+358 l1 // Verifying the new cmd.exe token
ffffdb85`c57e53d8  0xffffb38`e8ce06040

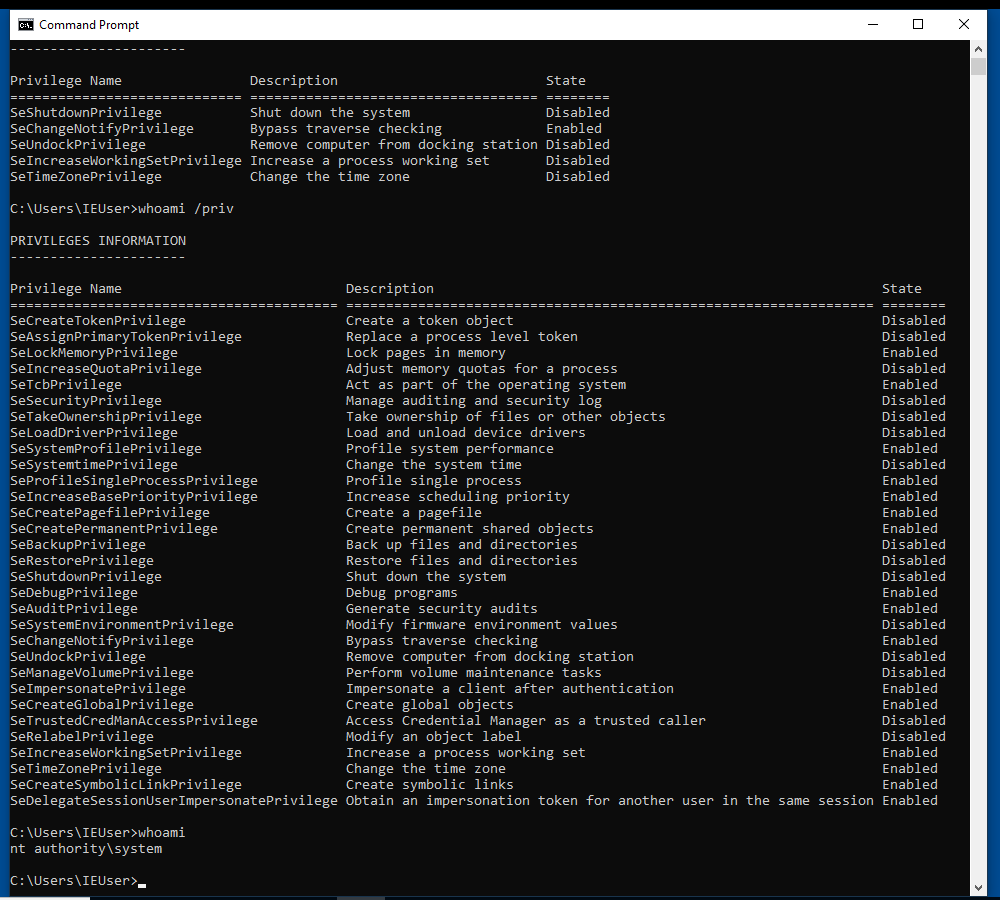

Going to the debuggee machine, Since the token is replaced in-place, the already running cmd.exe immediately reflects the new security context.

alt text

As I said is a very simple way to escalate privileges but is not for getting X user or X priv, is only to understand how windows structures work and it prepare you for the future exploit or program.

SID Replacement

This method is not patch the owner SID process to be Local System, that will crash, also know as a deadlock, replacing the user SID directly causes token incosistency and system instability, getting you a blue screen or a deadlock. The User SID is not just an identity, as the token, it is tied to the authentication context of the token.

Thus, the SID Replacement can be consider a Group SID replacemente or Integrity SID replacement. Remember, for this you need to create a low priv user, because ieuser is in the Admin Group, so he doesnt need to enter the password or any auth to execute as admin,

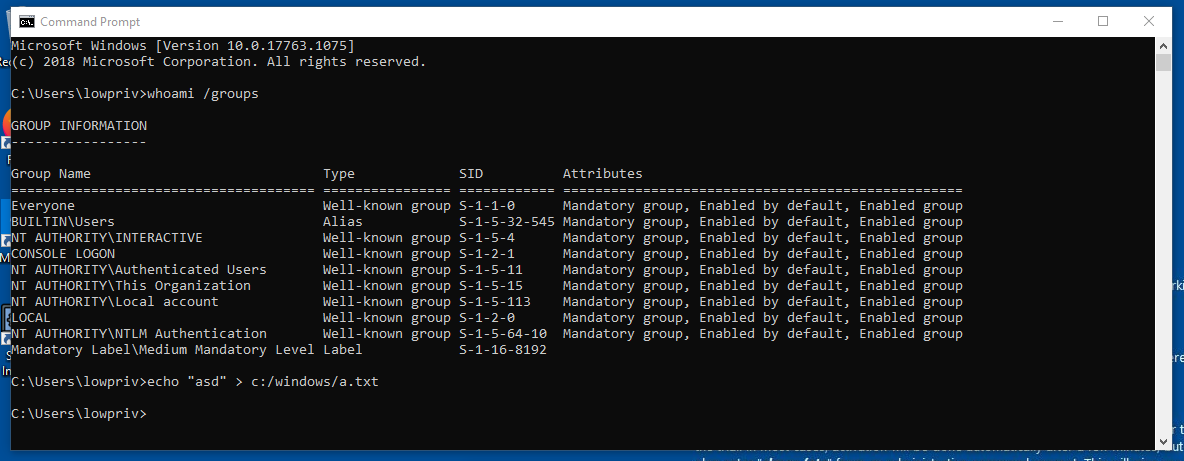

Creating lowpriv user

Remember for this attack do not be in a administrator account:

// Debuggee Machine (IP: 192.168.80.128)

As the Token Hijacking, first of all we will create the cmd process and gather a bit of information, also verify that is not in any admin lcoal group with:

// Debugger Machine (IP: 192.168.80.133)
C:\Windows\System32> net user lowpriv qwerty123 /add
C:\Windows\System32> net user lowpriv

Gathering lowpriv information

0: kd> !process 0 0 cmd.exe
PROCESS ffffde889880c540
    SessionId: 2  Cid: 24f8    Peb: 141d43f000  ParentCid: 2224
    DirBase: 116678000  ObjectTable: ffff8001cf253640  HandleCount:  74.
    Image: cmd.exe

0: kd> !process ffffde889880c540 1
PROCESS ffffde889880c540
    SessionId: 2  Cid: 24f8    Peb: 141d43f000  ParentCid: 2224
    DirBase: 116678000  ObjectTable: ffff8001cf253640  HandleCount:  74.
    Image: cmd.exe
    VadRoot ffffde8898b0cee0 Vads 34 Clone 0 Private 196. Modified 0. Locked 8.
    DeviceMap ffff8001cead5340
    Token                             ffff8001ceec68c0
    ElapsedTime                       06:34:34.306
    UserTime                          00:00:00.000
    KernelTime                        00:00:00.000
    QuotaPoolUsage[PagedPool]         42720
    QuotaPoolUsage[NonPagedPool]      5064
    Working Set Sizes (now,min,max)  (1000, 50, 345) (4000KB, 200KB, 1380KB)
    PeakWorkingSetSize                1027
    VirtualSize                       2101303 Mb
    PeakVirtualSize                   2101306 Mb
    PageFaultCount                    1281
    MemoryPriority                    BACKGROUND
    BasePriority                      8
    CommitCharge                      592

0: kd> !token ffff8001ceec68c0
_TOKEN 0xffff8001ceec68c0
TS Session ID: 0x2
User: S-1-5-21-321011808-3761883066-353627080-1003
User Groups:
 00 S-1-5-21-321011808-3761883066-353627080-513
    Attributes - Mandatory Default Enabled
 01 S-1-1-0
    Attributes - Mandatory Default Enabled
 02 S-1-5-32-545
    Attributes - Mandatory Default Enabled
 03 S-1-5-4
    Attributes - Mandatory Default Enabled
 04 S-1-2-1
    Attributes - Mandatory Default Enabled
 05 S-1-5-11
    Attributes - Mandatory Default Enabled
 06 S-1-5-15
    Attributes - Mandatory Default Enabled
 07 S-1-5-113
    Attributes - Mandatory Default Enabled
 08 S-1-5-5-0-4807673
    Attributes - Mandatory Default Enabled LogonId
 09 S-1-2-0
    Attributes - Mandatory Default Enabled
 10 S-1-5-64-10
    Attributes - Mandatory Default Enabled
 11 S-1-16-8192
    Attributes - GroupIntegrity GroupIntegrityEnabled
Primary Group: S-1-5-21-321011808-3761883066-353627080-513
Privs:
 19 0x000000013 SeShutdownPrivilege               Attributes -
 23 0x000000017 SeChangeNotifyPrivilege           Attributes - Enabled Default
 25 0x000000019 SeUndockPrivilege                 Attributes -
 33 0x000000021 SeIncreaseWorkingSetPrivilege     Attributes -
 34 0x000000022 SeTimeZonePrivilege               Attributes -
...

In all type of tokens there is a structure pointer: _SID_AND_ATTRIBUTES* RestrictedSids in the offset: 0xa0, please check there is no protection or any block into the admin hash you will see forward.

//0x10 bytes (sizeof)
struct _SID_AND_ATTRIBUTES
{
    VOID* Sid;                                                              //0x0
    ULONG Attributes;                                                       //0x8
};

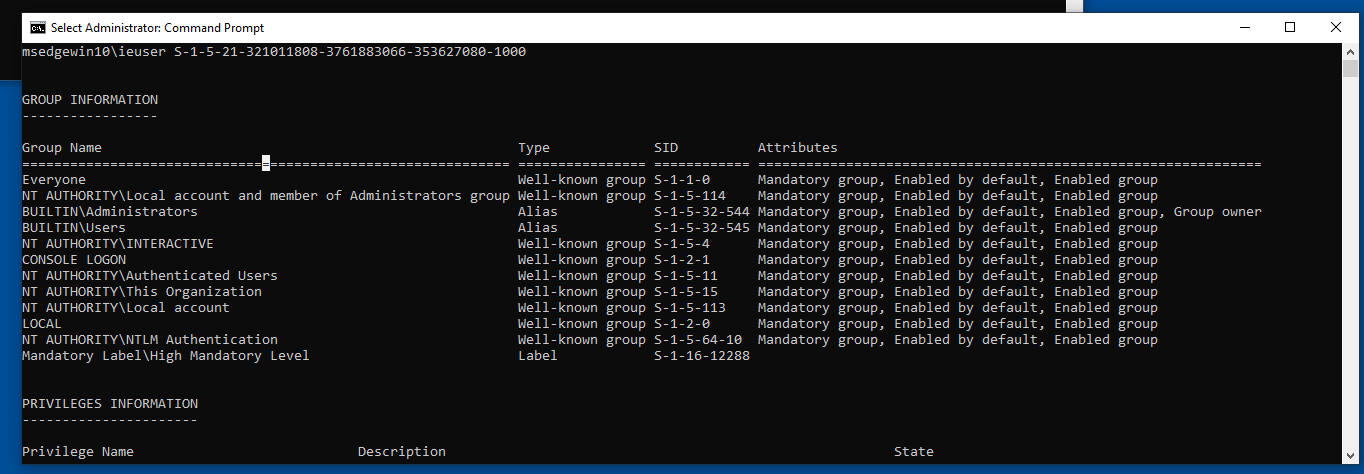

Gathering admin information

While reading: https://learn.microsoft.com/en-us/windows-server/identity/ad-ds/manage/understand-security-identifiers you can get the conclusion the SID of the System process (high priv user) is S-1-5-18, anyways you can obtain it with windbg:

0: kd> !process ffffde888f46d200 1
PROCESS ffffde888f46d200
    SessionId: none  Cid: 0004    Peb: 00000000  ParentCid: 0000
    DirBase: 001aa000  ObjectTable: ffff8001c4404ac0  HandleCount: 3737.
    Image: System
    VadRoot ffffde888f4702e0 Vads 8 Clone 0 Private 22. Modified 71267. Locked 0.
    DeviceMap ffff8001c4415900
    Token                             ffff8001c4406040
...

0: kd> !token ffff8001c4406040
_TOKEN 0xffff8001c4406040
TS Session ID: 0
User: S-1-5-18
User Groups:
 00 S-1-5-32-544
    Attributes - Default Enabled Owner
 01 S-1-1-0
    Attributes - Mandatory Default Enabled
 02 S-1-5-11
    Attributes - Mandatory Default Enabled
 03 S-1-16-16384
    Attributes - GroupIntegrity GroupIntegrityEnabled
Primary Group: S-1-5-18
Privs:
 02 0x000000002 SeCreateTokenPrivilege            Attributes -
 03 0x000000003 SeAssignPrimaryTokenPrivilege     Attributes -
 04 0x000000004 SeLockMemoryPrivilege             Attributes - Enabled Default
 05 0x000000005 SeIncreaseQuotaPrivilege          Attributes -
 07 0x000000007 SeTcbPrivilege                    Attributes - Enabled Default
 08 0x000000008 SeSecurityPrivilege               Attributes -
 09 0x000000009 SeTakeOwnershipPrivilege          Attributes -
 10 0x00000000a SeLoadDriverPrivilege             Attributes -
 11 0x00000000b SeSystemProfilePrivilege          Attributes - Enabled Default
 12 0x00000000c SeSystemtimePrivilege             Attributes -
 13 0x00000000d SeProfileSingleProcessPrivilege   Attributes - Enabled Default
 14 0x00000000e SeIncreaseBasePriorityPrivilege   Attributes - Enabled Default
 15 0x00000000f SeCreatePagefilePrivilege         Attributes - Enabled Default
 16 0x000000010 SeCreatePermanentPrivilege        Attributes - Enabled Default
 17 0x000000011 SeBackupPrivilege                 Attributes -
 18 0x000000012 SeRestorePrivilege                Attributes -
 19 0x000000013 SeShutdownPrivilege               Attributes -
 20 0x000000014 SeDebugPrivilege                  Attributes - Enabled Default
 21 0x000000015 SeAuditPrivilege                  Attributes - Enabled Default
 22 0x000000016 SeSystemEnvironmentPrivilege      Attributes -
 23 0x000000017 SeChangeNotifyPrivilege           Attributes - Enabled Default
 25 0x000000019 SeUndockPrivilege                 Attributes -
 28 0x00000001c SeManageVolumePrivilege           Attributes -
 29 0x00000001d SeImpersonatePrivilege            Attributes - Enabled Default
 30 0x00000001e SeCreateGlobalPrivilege           Attributes - Enabled Default
 31 0x00000001f SeTrustedCredManAccessPrivilege   Attributes -
 32 0x000000020 SeRelabelPrivilege                Attributes -
 33 0x000000021 SeIncreaseWorkingSetPrivilege     Attributes - Enabled Default
 34 0x000000022 SeTimeZonePrivilege               Attributes - Enabled Default
 35 0x000000023 SeCreateSymbolicLinkPrivilege     Attributes - Enabled Default
 36 0x000000024 SeDelegateSessionUserImpersonatePrivilege  Attributes - Enabled Default

Also you can reach out this microsoft blog for a better understanding of how SID is programmed: https://devblogs.microsoft.com/oldnewthing/20040315-00/?p=40253 In this case, we will focus on SID: S-1-5-32-544 as is the BUILTIN\Administrator, it doesn’t matter which SID you choose:

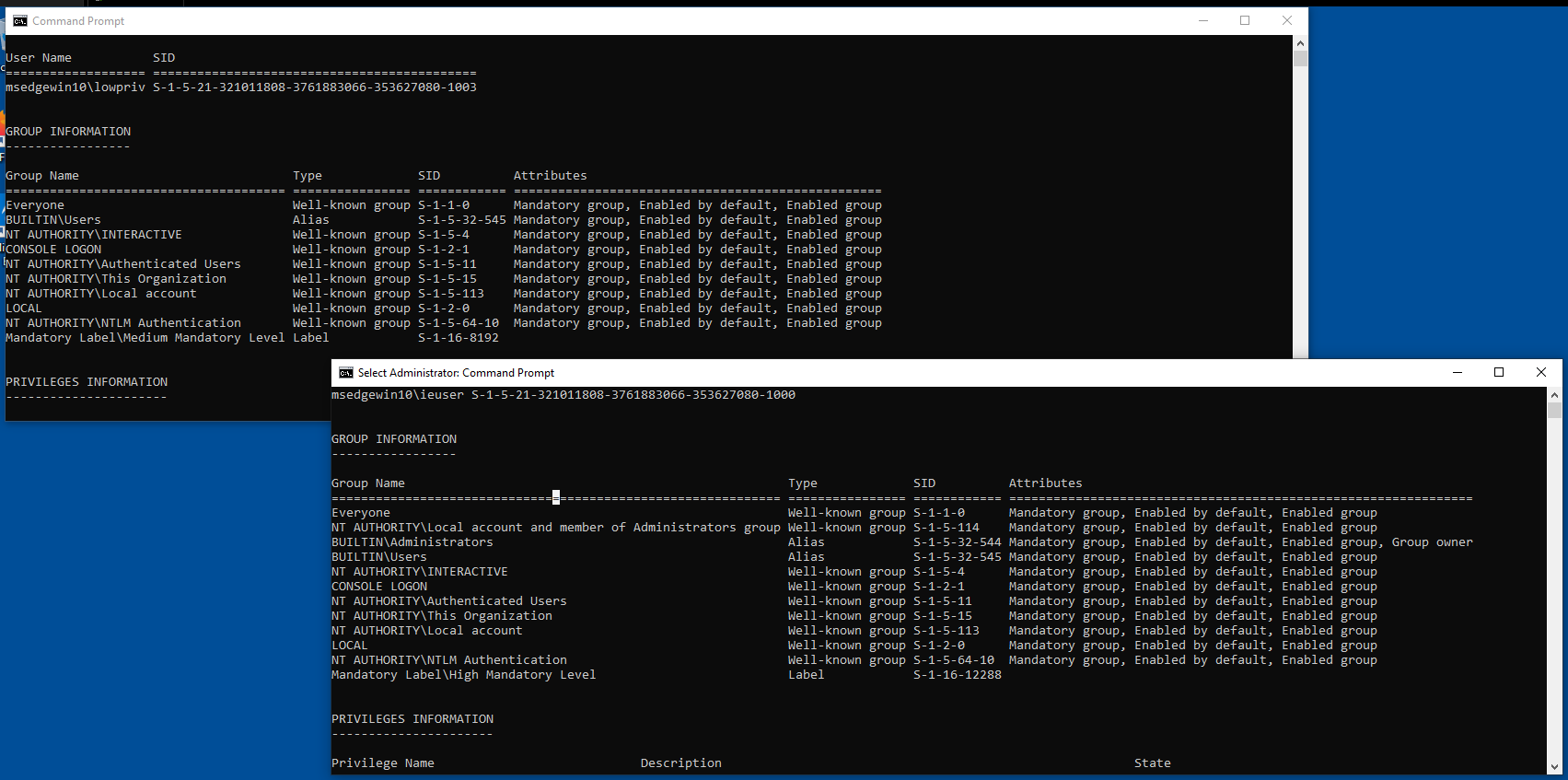

alt text

That terminal is when you Run as Administrator after putting the password, here is the diff:

Calculating structures offsets for hijack

Being the priv esc token: ffff8001cf1af900, we can calculate the offset of the SID we want: UserAndGroups[3].

0: kd> !token ffff8001cf1af900
_TOKEN 0xffff8001cf1af900
TS Session ID: 0x2
User: S-1-5-21-321011808-3761883066-353627080-1000
User Groups:
 00 S-1-5-21-321011808-3761883066-353627080-513
    Attributes - Mandatory Default Enabled
 01 S-1-1-0
    Attributes - Mandatory Default Enabled
 02 S-1-5-114
    Attributes - Mandatory Default Enabled
 03 S-1-5-32-544
    Attributes - Mandatory Default Enabled Owner

Again, if we check the offset of the struct we get: +0x098:

0: kd> dt nt!_TOKEN ffff8001cf1af900 UserAndGroups
   +0x098 UserAndGroups : 0xffff8001`cf1afd90 _SID_AND_ATTRIBUTES

0: kd> dx -id 0,0,ffffde888f46d200 -r1 ((ntkrnlmp!_SID_AND_ATTRIBUTES *)0xffff8001cf1afd90)
((ntkrnlmp!_SID_AND_ATTRIBUTES *)0xffff8001cf1afd90)                 : 0xffff8001cf1afd90 [Type: _SID_AND_ATTRIBUTES *]
    [+0x000] Sid              : 0xffff8001cf1afe80 [Type: void *]
    [+0x008] Attributes       : 0x0 [Type: unsigned long]

0: kd> dx ((nt!_TOKEN*)0xffff8001cf1af900)->UserAndGroups[3]
((nt!_TOKEN*)0xffff8001cf1af900)->UserAndGroups[3]                 [Type: _SID_AND_ATTRIBUTES]
    [+0x000] Sid              : 0xffff8001cf1afec4 [Type: void *]
    [+0x008] Attributes       : 0x7 [Type: unsigned long]

Once the information has been collected in your notebook:

process -> token -> sid offset -> sid value

(lowpriv) ffffde889880c540 -> ffff8001ceec68c0 -> ?? -> ??
S-1-5-15 -> To change

(admin) ffffde8898a71080 -> ffff8001cf1af900 -> 03-> 0xffff8001cf1afec4
S-1-5-32-544 -> To hijack

Within the low-privilege token, we identified “This Organization,” which is unlikely to be used and could therefore be a suitable target for hijacking.

06 S-1-5-15
   Attributes - Mandatory Default Enabled

So, the objetive is to reemplaze This Organization (S-1-5-15) to Administrators (S-1-5-32-544), we finish the previuos table:

0: kd> dx ((nt!_TOKEN*)0xffff8001ceec68c0)->UserAndGroups[6]
((nt!_TOKEN*)0xffff8001ceec68c0)->UserAndGroups[6]                 [Type: _SID_AND_ATTRIBUTES]
    [+0x000] Sid              : 0xffff8001ceec6e8c [Type: void *]
    [+0x008] Attributes       : 0x7 [Type: unsigned long]

(lowpriv) ffffde889880c540 -> ffff8001ceec68c0 -> 06 -> 0xffff8001ceec6e8c

Replacing SID Group pointer

Now, it is time to manually calculate the offset in order to use eq to replace the SID. As we know, the UserAndGroups structure has a size of 0x10 bytes. Since S-1-5-15 is at index 6, the calculation is 0x10 × 6 plus the SID address:

0: kd> dq 0xffff8001ceec68c0+0x98 l1
ffff8001`ceec6958  ffff8001`ceec6d50 // SID Address

0: kd> dq ffff8001`ceec6d50+60 l1
ffff8001`ceec6db0  ffff8001`ceec6e8c // SID Value

And we hijack the value:

0: kd> dq ffff8001`ceec6d50+60 l1 // Read again haha
ffff8001`ceec6db0  ffff8001`ceec6e8c

0: kd> eq ffff8001ceec6d50+60 ffff8001`cf1afec4 // Hijack the SID
0: kd> eb ffff8001ceec6d50+60+0x8 f // Change the attribue value
0: kd> dq ffff8001`ceec6d50+60 l1 // Check the new SID
ffff8001`ceec6db0  ffff8001`cf1afec4

Attributes fix

If you dont change the attribute value from 0x7 to 0xf, for being group owner in the !token wont appear any change. For more information:

https://learn.microsoft.com/en-us/windows/win32/api/winnt/ns-winnt-token_groups

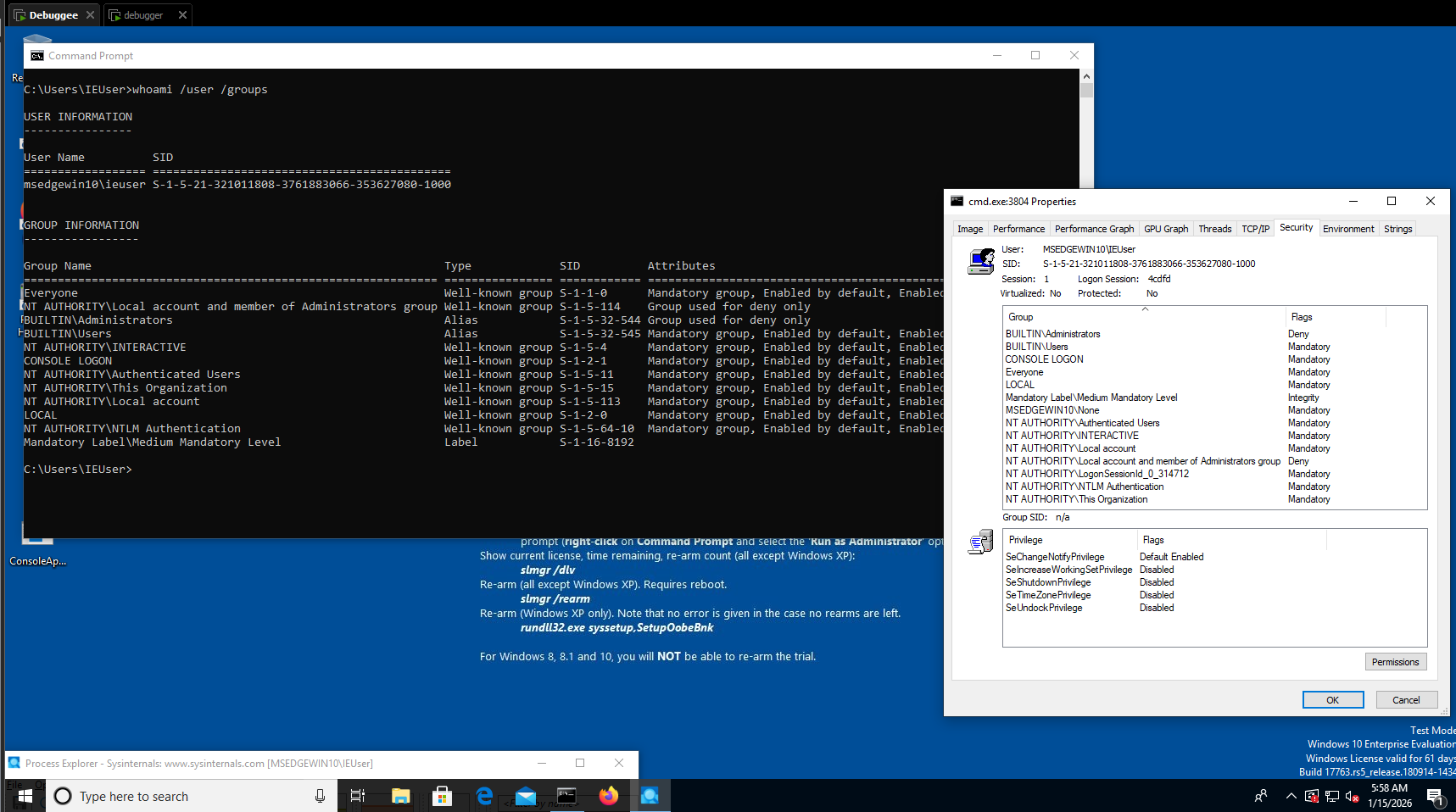

Now, if the user tries to do an administration action, such as write in the C:/Windows/ folder, he will be able to do it, without restriction.

Despite all, binaries like: whoami wont be recognized by the shell and if you try to execute it with the full path it will crash the OS. One theory is that it is the relationship between the user and the process token, causing a mismatch that leads to the crash, but surely this is not even close to what is really happening.

(Brief) Conclusion

The section shown below is not directly related to the sections of the entire blog.

0: kd> dq 0xffffb305cb1e9060+0x98 l1
ffffb305`cb1e90f8  ffffb305`cb1e94f0
0: kd> dq ffffb305`cb1e94f0
ffffb305`cb1e94f0  ffffb305`cb1e95c0 00005fec`00000000
ffffb305`cb1e9500  ffffb305`cb1e95dc 00005ab6`00000007
ffffb305`cb1e9510  ffffb305`cb1e95f8 000a8000`00000007
ffffb305`cb1e9520  ffffb305`cb1e9604 0000000c`00000007
ffffb305`cb1e9530  ffffb305`cb1e9614 00005434`00000007
ffffb305`cb1e9540  ffffb305`cb1e9620 000ad000`00000007
ffffb305`cb1e9550  ffffb305`cb1e962c 0000000c`00000007
ffffb305`cb1e9560  ffffb305`cb1e9638 5ae85a67`00000007
0: kd> eq 0xffffb305`cb1e9520 0xffffb305cb23d630
0: kd> eb 0xffffb305`cb1e9520+0x8 0xf
0: kd> dq ffffb305`cb1e94f0
ffffb305`cb1e94f0  ffffb305`cb1e95c0 00005fec`00000000
ffffb305`cb1e9500  ffffb305`cb1e95dc 00005ab6`00000007
ffffb305`cb1e9510  ffffb305`cb1e95f8 000a8000`00000007
ffffb305`cb1e9520  ffffb305`cb23d630 0000000c`0000000f
ffffb305`cb1e9530  ffffb305`cb1e9614 00005434`00000007
ffffb305`cb1e9540  ffffb305`cb1e9620 000ad000`00000007
ffffb305`cb1e9550  ffffb305`cb1e962c 0000000c`00000007
ffffb305`cb1e9560  ffffb305`cb1e9638 5ae85a67`00000007

lowpriv:
    - TOKEN: 0xffffb305cb1e9060

    02 S-1-5-32-545 (Alias: BUILTIN\Users)
    Attributes - Mandatory Default Enabled

    0: kd> dx ((nt!_TOKEN*)0xffffb305cb1e9060)->UserAndGroups[3]
    [+0x000] Sid              : 0xffffb305cb1e9604 [Type: void *]
    [+0x008] Attributes       : 0x7 [Type: unsigned long]

0: kd> dq ffffb305`cb1e94f0
ffffb305`cb1e94f0  ffffb305`cb1e95c0 00005fec`00000000
ffffb305`cb1e9500  ffffb305`cb1e95dc 00005ab6`00000007
ffffb305`cb1e9510  ffffb305`cb1e95f8 000a8000`00000007
ffffb305`cb1e9520  ffffb305`cb1e9604 0000000c`00000007
ffffb305`cb1e9530  ffffb305`cb1e9614 00005434`00000007
ffffb305`cb1e9540  ffffb305`cb1e9620 000ad000`00000007
ffffb305`cb1e9550  ffffb305`cb1e962c 0000000c`00000007
ffffb305`cb1e9560  ffffb305`cb1e9638 5ae85a67`00000007


admin:
    - TOKEN: 0xffffb305cb23d060

    03 S-1-5-32-544 (Alias: BUILTIN\Administrators)
    Attributes - Mandatory Default Enabled Owner

    0: kd> dx ((nt!_TOKEN*)0xffffb305cb23d060)->UserAndGroups[4]
    [+0x000] Sid              : 0xffffb305cb23d630 [Type: void *]
    [+0x008] Attributes       : 0xf [Type: unsigned long]

I hope you enjoyed the write-up. :)

До скорого.

Arbritrary Write - HEVD (ft. Astharot15)
